Product Description
CFM1 series moulded case circuit breaker is a new type product developed and manufactured by adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current up to 800A for infrequent changing over and starting of the motors.

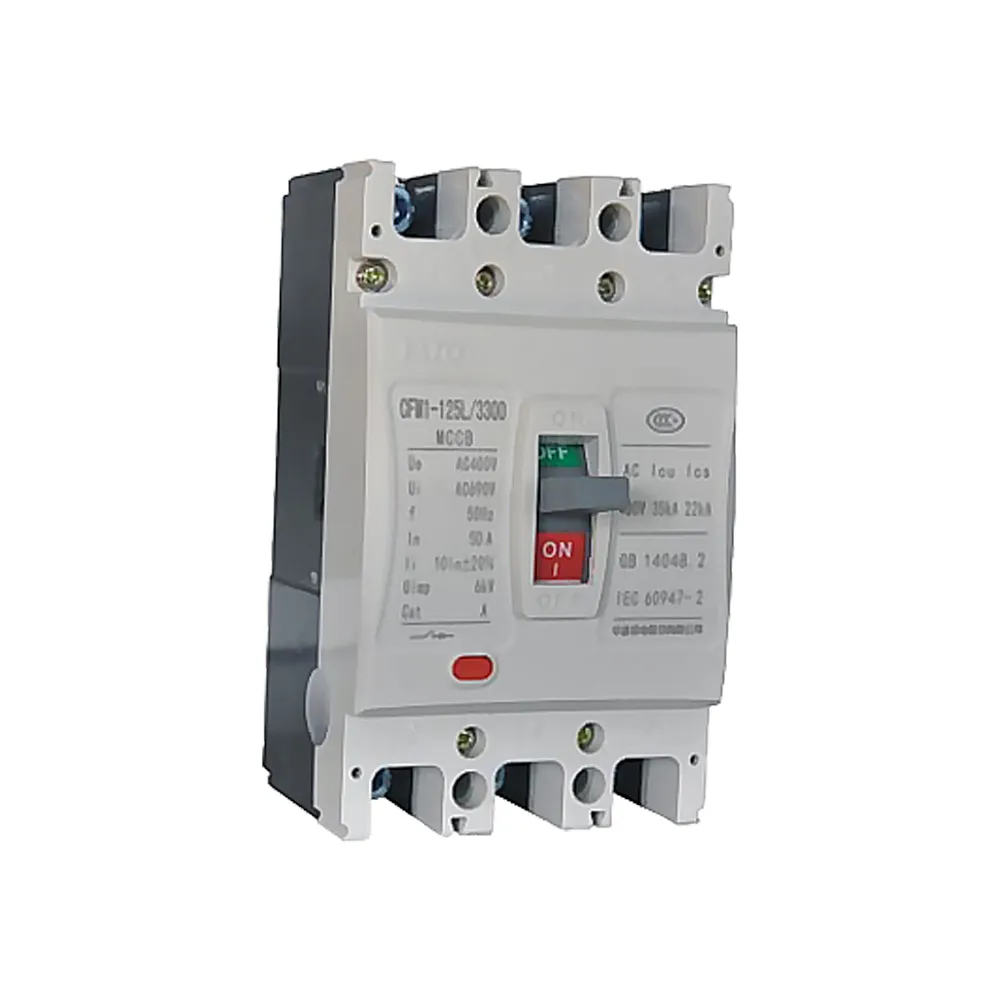

CFM1 Moulded Case Circuit Breaker
Supply Capability
| Qty | Shipping Time |
| 1 - 1Plant | 5 days |
| > 1 Plant | Need to negotiate |
Product descriptions
Application
CFM1 series moulded case circuit breaker is a new type product developed and manufactured by adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current up to 800A for infrequent changing over and starting of the motors. Equiped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 stardard.

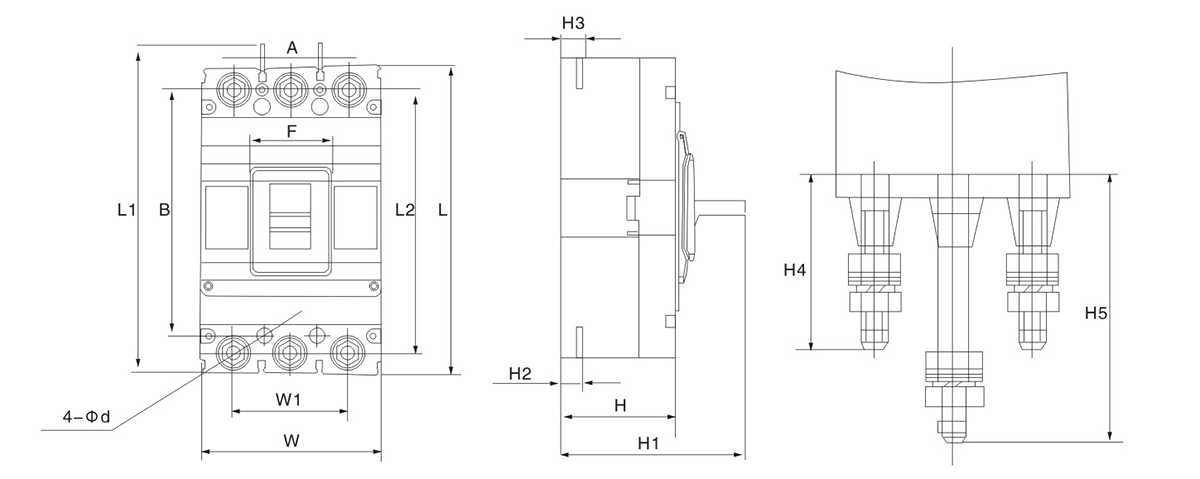

Dimensions

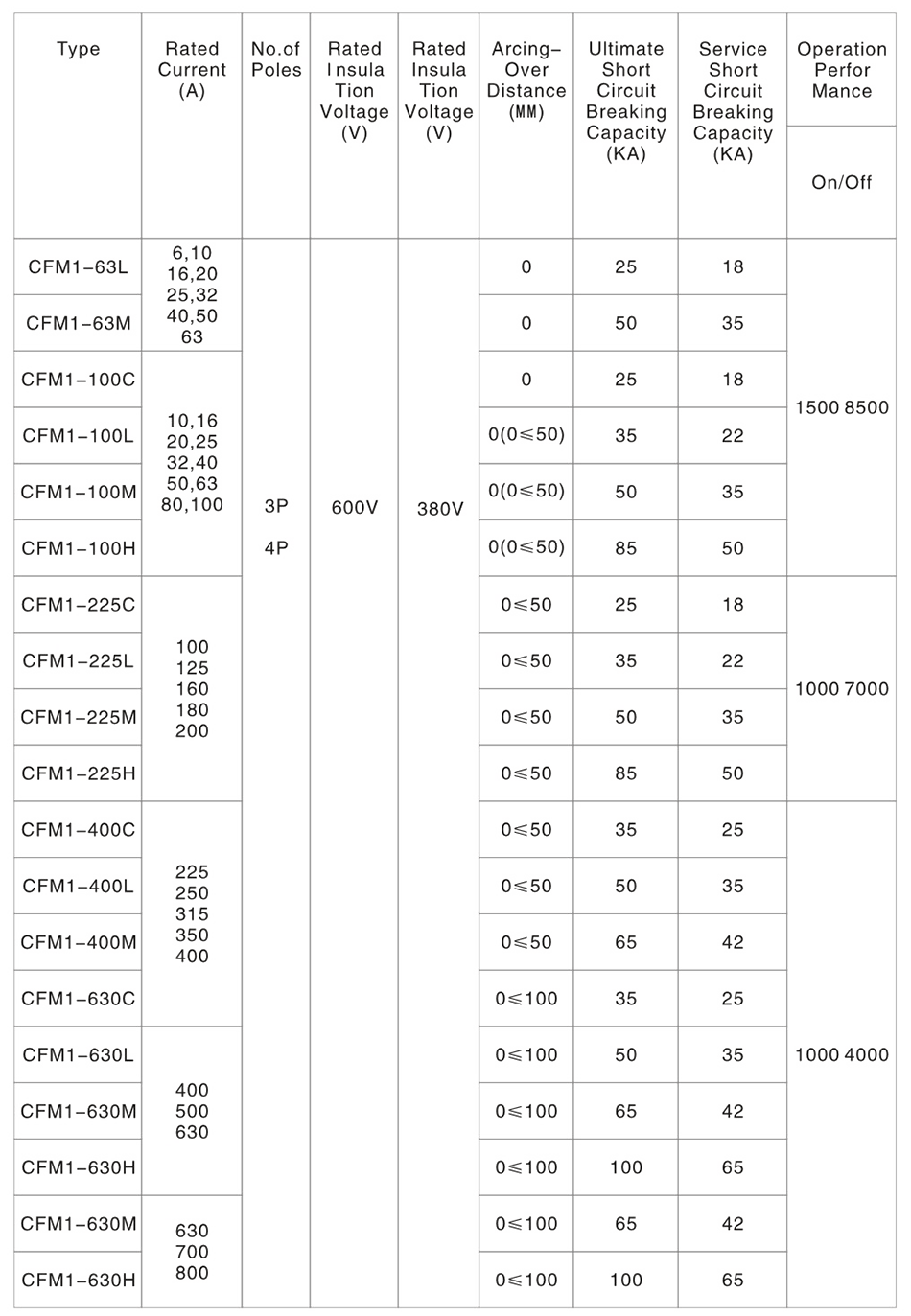

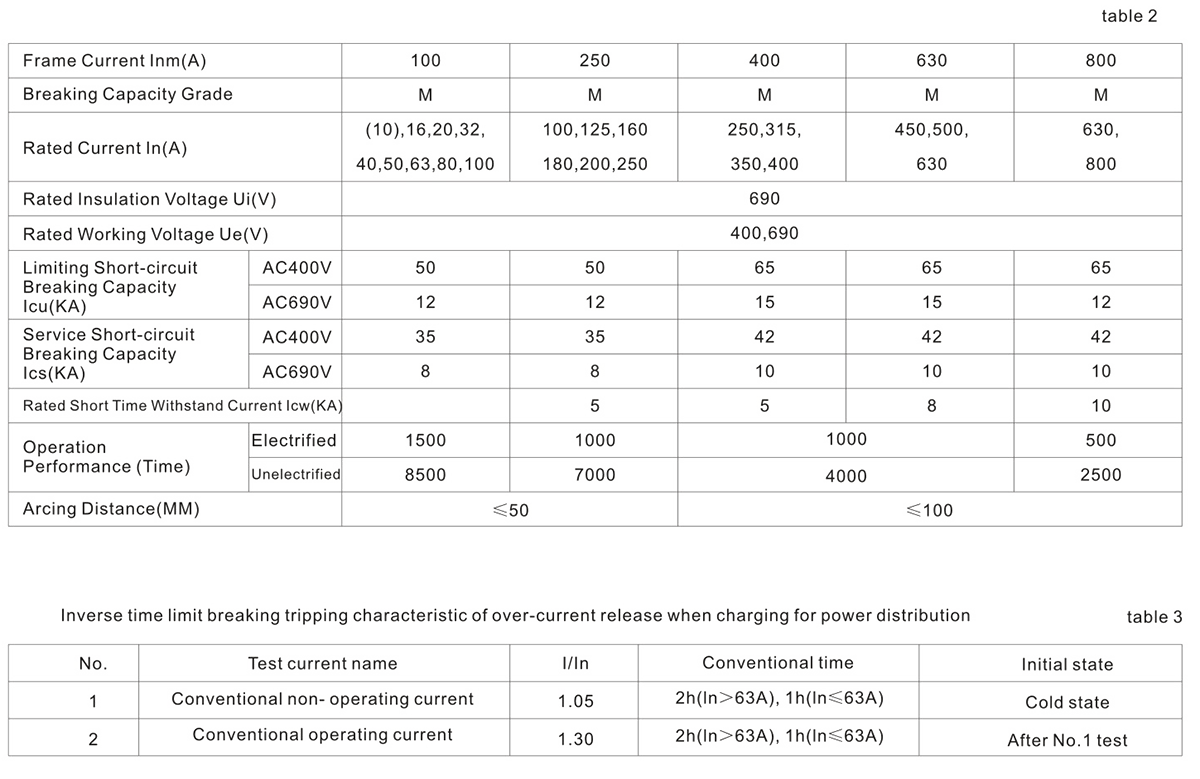

Main Technical Data
Dimensions
